Pneumatic angle seat valves · DN15–DN80
Pneumatic Angle Seat Valve
Y-pattern angle seat valve in CF8M or CF8 stainless, DN15 to DN80, PN16, with a pneumatic cylinder head. Threaded, weld-end or tri-clamp connections.
- Size range
- DN15, DN20, DN25 … DN80
- Body material
- CF8M (cast 316) or CF8 (cast 304)
- Rating
- PN16
- Body pattern
- Y-pattern angle seat
This is an inquiry basket, not a checkout. You send the list, we confirm price, outlet bore and lead time in writing.
1 pcminimum order
Freesample for first order
OEMneutral packing
About this model
The body is Y-pattern: the seat sits at the angle so the flow turns once instead of twice, which is why this valve holds a high flow for its size and why the seat takes less of a beating than an inline globe valve of the same bore.

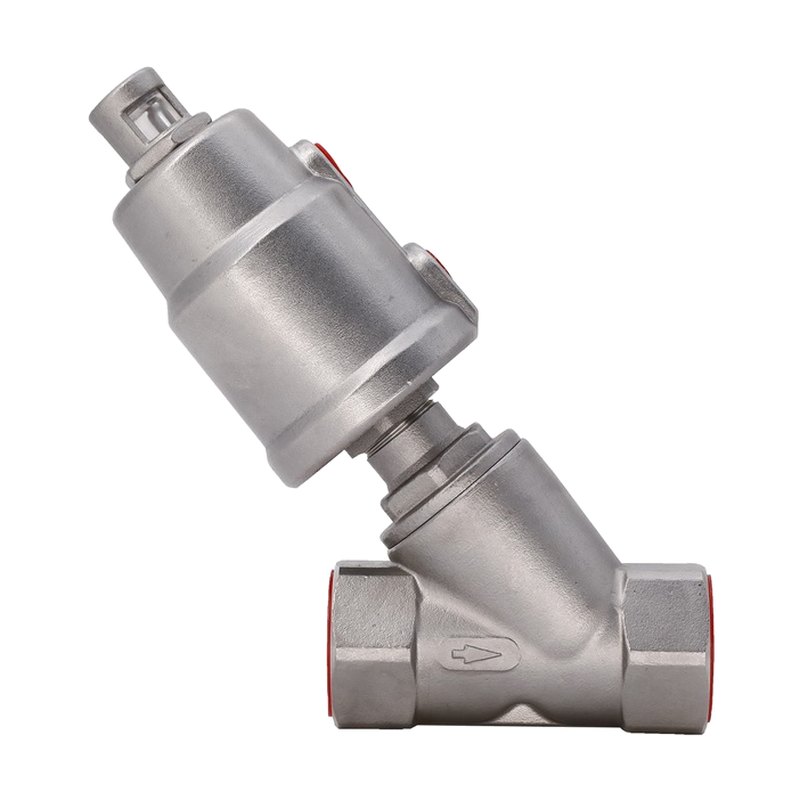

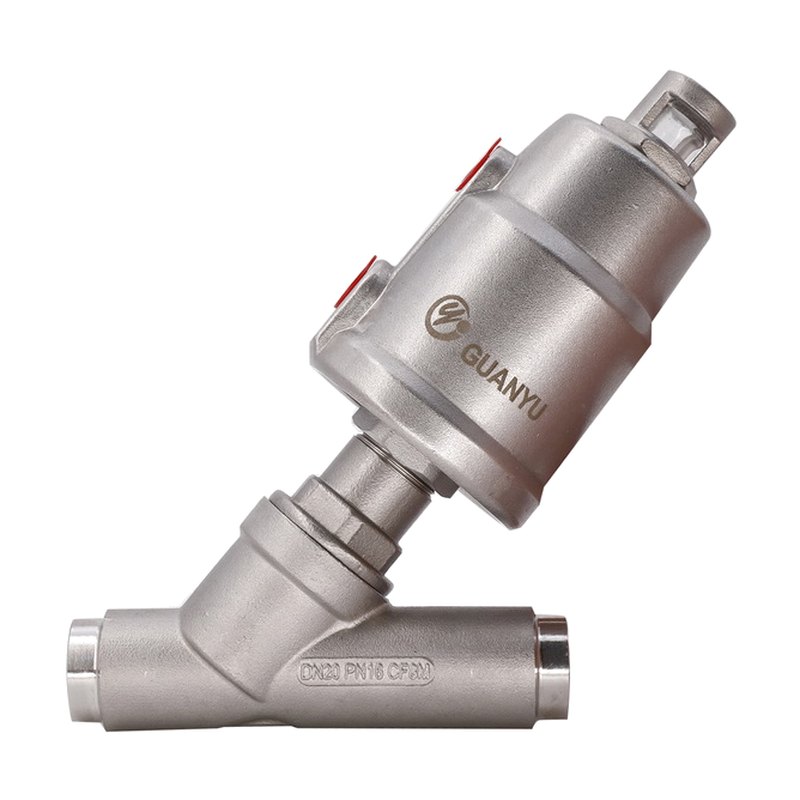

Three end connections are shown here on the same body pattern — female thread, weld end and tri-clamp. The castings in the photos are DN25 and DN32, and each carries its own size, PN16 and grade on the side; the samples shown are CF8M. The same pattern runs from DN15 to DN80.
Two grades are available and the choice is made on the medium, not on price. CF8 is cast 304: fine for water, steam, air, and most food and beverage duty. CF8M is cast 316 — the molybdenum is what holds up against chlorides, dilute acids, marine air and cleaning agents. If the line carries brine, hypochlorite or a chloride-bearing product, specify CF8M.
The actuator is a pneumatic cylinder in a stainless housing, mounted on a yoke above the stem. Tell us the medium, the line pressure and whether the valve has to fail closed or fail open, and the cylinder is specified from that.
Design features
- DN15 to DN80 in one body pattern
- CF8M (cast 316) or CF8 (cast 304) body, PN16
- Y-pattern seat — one flow turn, high flow per bore
- Female thread, weld end or tri-clamp on the same body
- Pneumatic cylinder in a stainless housing
- Fail-open or fail-closed specified per duty
Technical data
| Size range | DN15, DN20, DN25 … DN80 |
|---|---|
| Body material | CF8M (cast 316) or CF8 (cast 304) |
| Rating | PN16 |
| Body pattern | Y-pattern angle seat |
| Actuation | Pneumatic cylinder, stainless housing |
| End connections | Female thread, weld end, or tri-clamp |
| Body marking | Size, PN16 and grade, cast into the body side |
Applications
- Steam, hot water and compressed air lines
- Food and beverage — filling and CIP circuits
- Chemical dosing and dilution skids
- Textile dyeing and finishing
- Water treatment — filter and dosing lines
Packing
One PE bag per piece, carton outside. Port caps fitted, actuator braced against the carton wall. Neutral packing as standard; private label available.
Custom options
Tube and stem lengths outside the standard range, alternative seal materials and private labelling are quoted per order. Send the drawing or the dimensions you need and we will confirm what is possible before quoting.
