Knife gate valves · DN50–DN600
Stainless Steel Knife Gate Valve

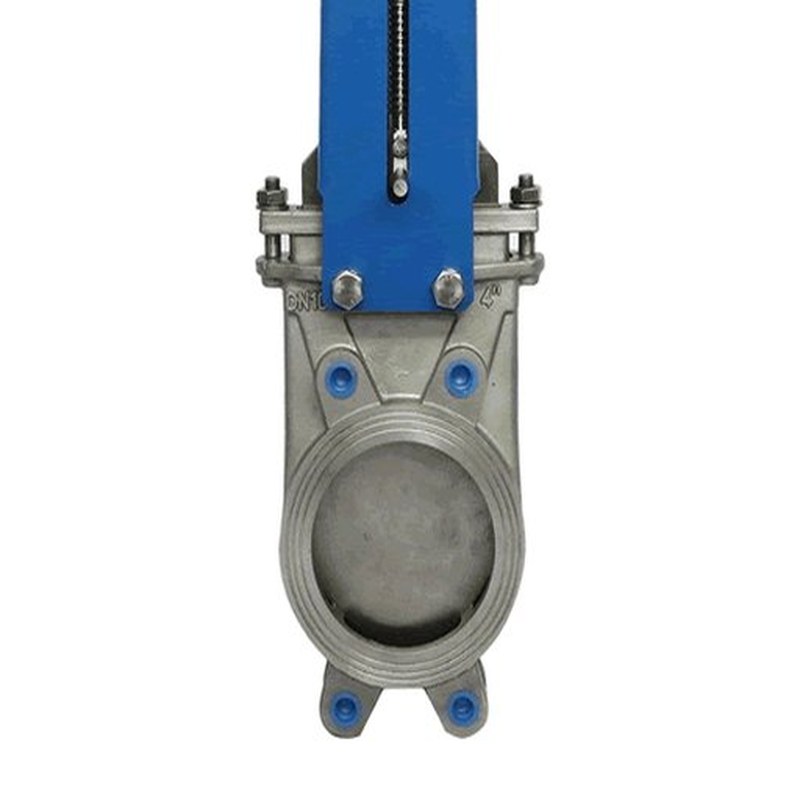

The same wafer knife gate valve with a stainless steel body, for media that would attack painted iron, or where the line itself is stainless.
- Size range
- DN50, DN65, DN80 … DN600
- Body material
- Stainless steel
- Body style
- Wafer, lugged
- Gate
- Knife gate, rising stem
This is an inquiry basket, not a checkout. You send the list, we confirm price, outlet bore and lead time in writing.
1 pcminimum order
Freesample for first order
OEMneutral packing
About this model
Same casting pattern as the ductile iron version, in stainless. The reason to take this one is the medium: chlorides, dilute acids, food and pharmaceutical duty, or a stainless line where a painted iron body would be the odd part out.
Because the body pattern is shared, DN50 to DN600 and both actuator types carry over unchanged. A stainless valve replaces an iron one on the same bolt holes.
Tell us the medium, the concentration and the temperature and the stainless grade is fixed from that. We do not quote a grade before the duty is known — the wrong one is an expensive mistake on a DN300 body.
Design features
- DN50 to DN600 in one series
- Stainless body, wafer pattern with lugged ports
- Rising stem with a bolted gland
- Handwheel, lever or pneumatic cylinder on the same yoke
- Shares the flange drilling with the ductile iron version
- Grade selected against the actual medium, not a default
Technical data
| Size range | DN50, DN65, DN80 … DN600 |
|---|---|
| Body material | Stainless steel |
| Body style | Wafer, lugged |
| Gate | Knife gate, rising stem |
| Stem seal | Bolted gland |
| Actuation | Handwheel, lever, or pneumatic cylinder |
| Connection | Wafer body, bolts between the line flanges |
| Grade | Fixed per order against the medium |
Applications
- Food and beverage — product and CIP circuits
- Chemical — corrosive and chloride-bearing media
- Pharmaceutical — cleanable wetted path
- Water treatment — dosing and filter lines
- Marine and offshore — salt-laden atmospheres
Packing
Port faces boarded, stem wrapped, actuator braced. Carton for the smaller sizes and a case above DN200. Neutral packing as standard; private label available.
Custom options
Tube and stem lengths outside the standard range, alternative seal materials and private labelling are quoted per order. Send the drawing or the dimensions you need and we will confirm what is possible before quoting.
