Anti-drip filling heads · GY-TC505-30
Pneumatic Anti-Drip Filling Head
A clamp-mount filling head for sanitary lines. The stem closes at the nozzle tip, so the stream cuts off clean between cycles.
- Model
- GY-TC505-30
- Overall height
- 235 mm
- Cylinder
- 40 × 62 mm block, square body
- Air ports
- 2 × 6 mm push-in
This is an inquiry basket, not a checkout. You send the list, we confirm price, outlet bore and lead time in writing.
1 pcminimum order
Freesample for first order
OEMneutral packing
About this model

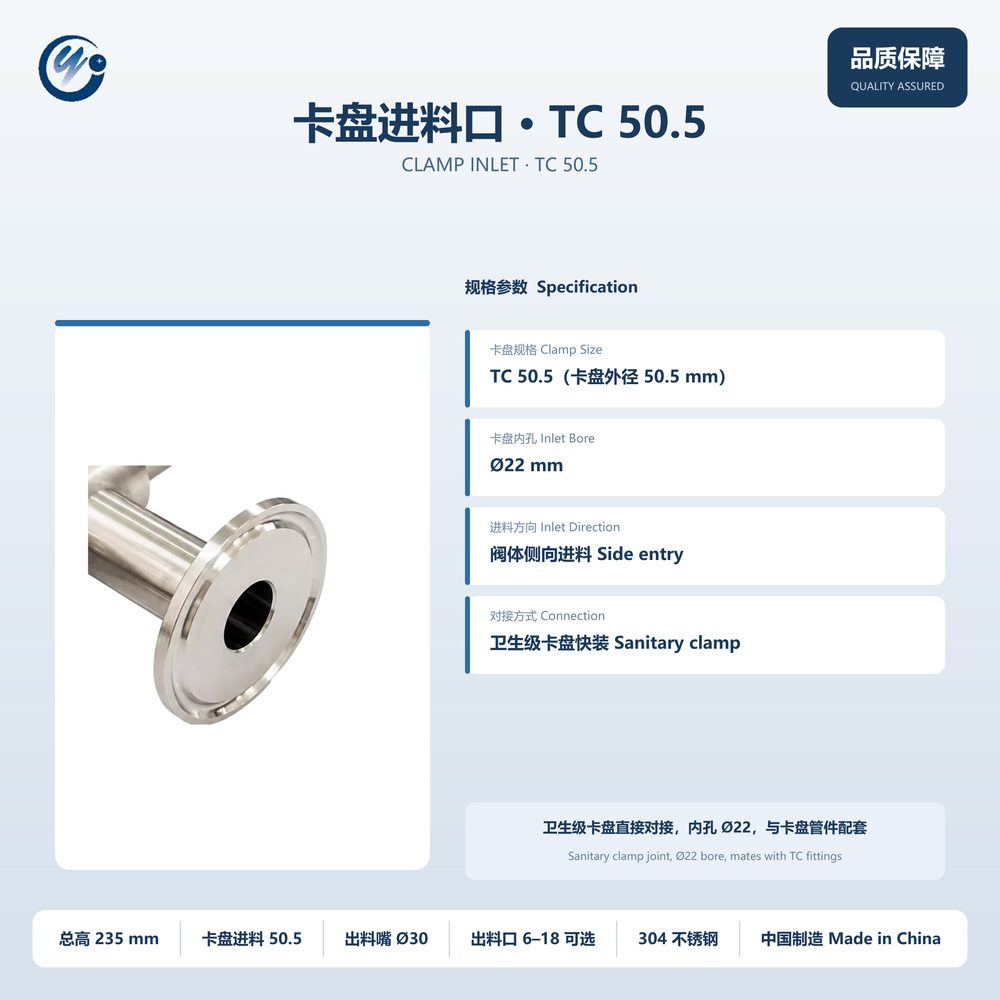

The GY-TC505-30 is built for lines that already run sanitary clamp piping. Its inlet is a TC 50.5 ferrule with a Ø22 mm bore and a 42 mm neck, so the head clamps straight onto a standard tri-clamp fitting without an adapter. A 40 × 62 mm block cylinder sits on top, and two 6 mm push-in ports drive the stem down to close at the nozzle tip — that tip closure is what stops the drip between cycles.

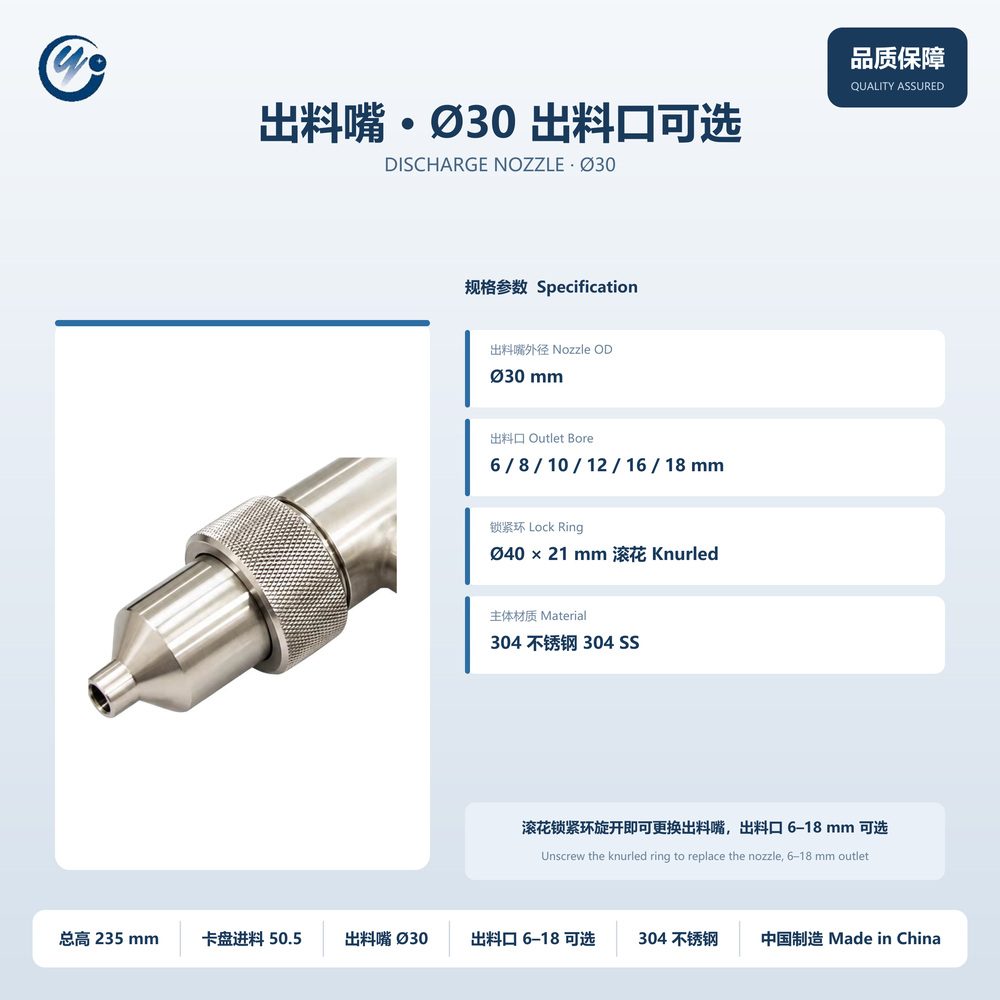

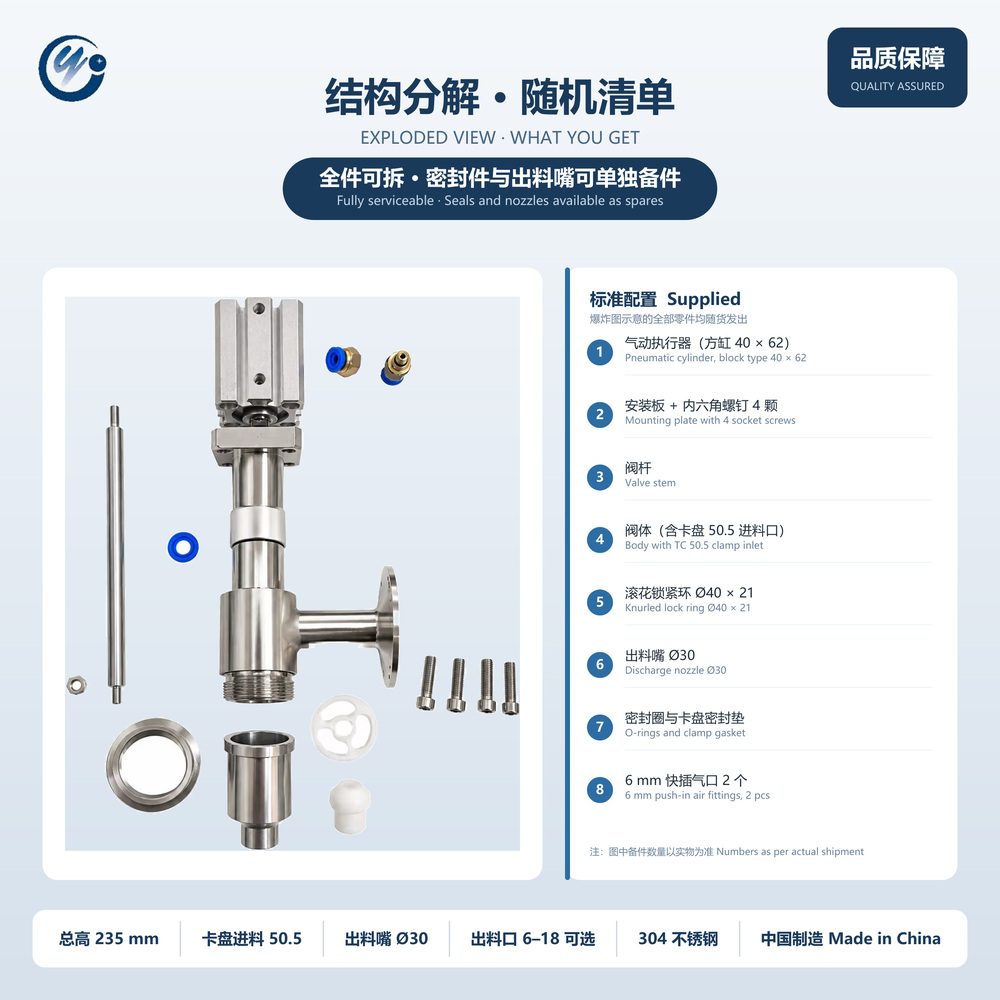

The Ø40 × 21 mm knurled ring at the bottom releases the Ø30 mm nozzle, so a single head covers outlet bores from 6 to 18 mm. The three-step neck (Ø24 / Ø26 / Ø24) is sized for a bracket or mounting plate, and the 235 mm overall height leaves room for the nozzle to sit above the container mouth.

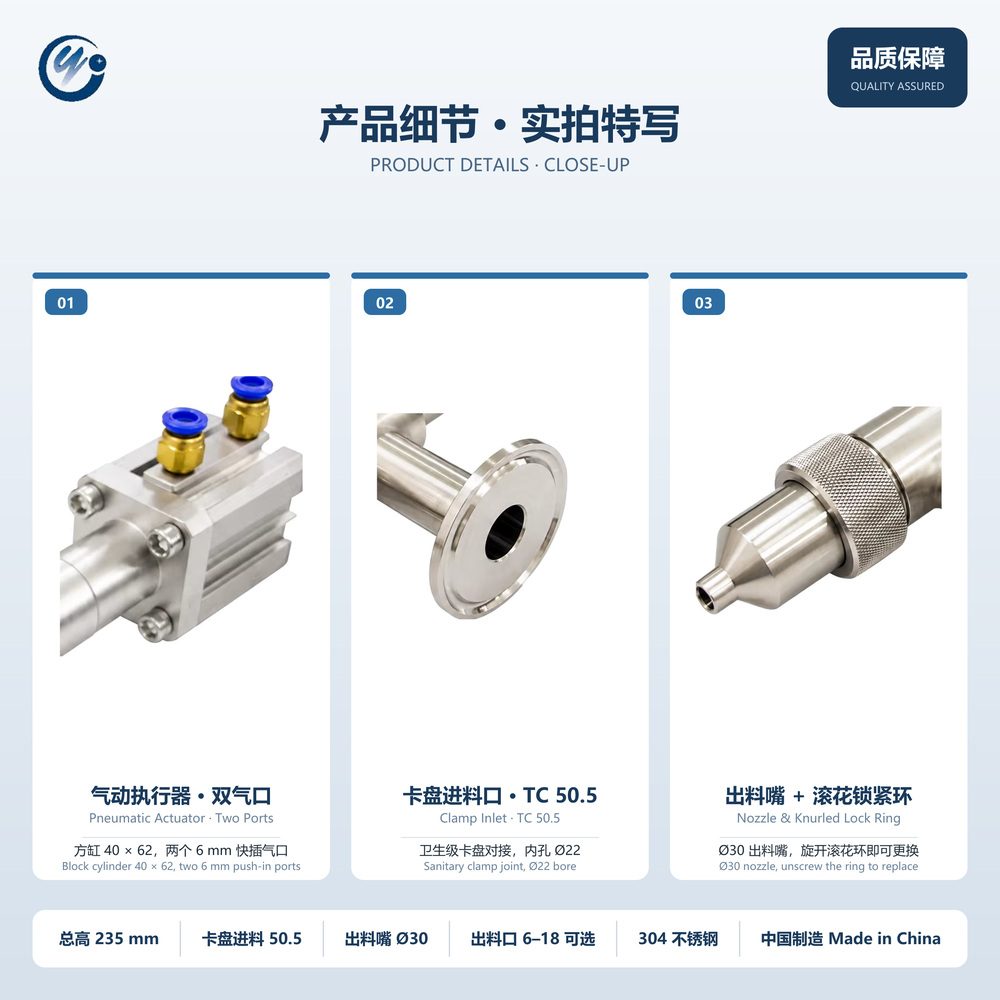

Design features
- Pneumatic actuation through a 40 × 62 mm block cylinder with two 6 mm push-in ports
- Tri-clamp 50.5 mm inlet: 42 mm neck, Ø22 mm bore, fits standard sanitary ferrules
- Quick nozzle change: unscrew the Ø40 × 21 mm knurled ring, swap the Ø30 mm nozzle
- One head covers six outlet bores — 6, 8, 10, 12, 16 and 18 mm
- Stem closes at the nozzle tip, so the stream cuts off without hanging
- Body and nozzle in 304 stainless steel

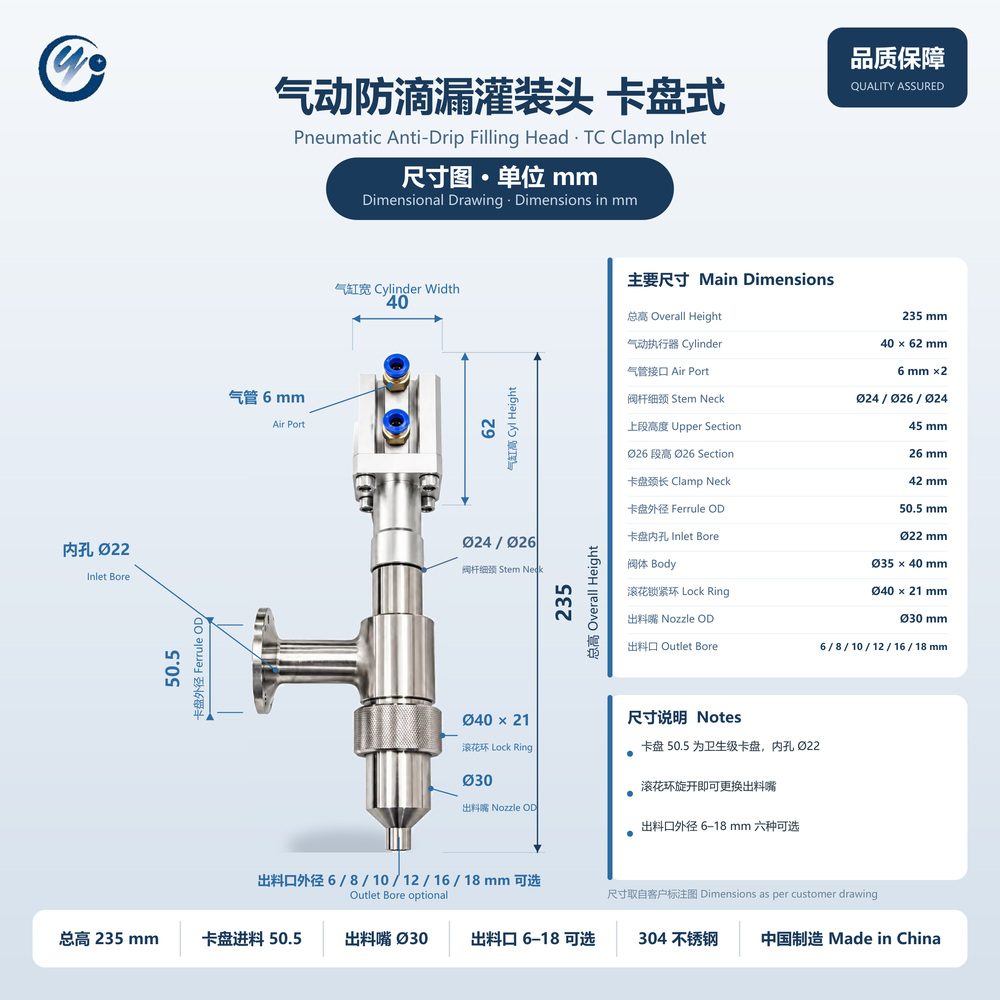

Technical data
| Model | GY-TC505-30 |
|---|---|
| Overall height | 235 mm |
| Cylinder | 40 × 62 mm block, square body |
| Air ports | 2 × 6 mm push-in |
| Stem neck | Ø24 / Ø26 / Ø24 mm, three-step |
| Clamp neck length | 42 mm |
| Inlet | Tri-clamp 50.5 mm (TC 50.5) |
| Inlet bore | Ø22 mm |
| Valve body | Ø35 × 40 mm |
| Lock ring | Ø40 × 21 mm, knurled |
| Nozzle OD | Ø30 mm |
| Outlet bore | 6 / 8 / 10 / 12 / 16 / 18 mm, selectable |
| Body material | 304 stainless steel |
| Actuation | Pneumatic, block cylinder |
Applications
- Sauces and seasonings — chili paste, bean paste, ketchup, salad dressing
- Food and beverage — syrups, jams, dairy, juice
- Household and personal care — detergents, lotions, sanitisers
- Pharmaceutical and fine chemical — liquid preparations and solvents
Packing
One PE bag per piece, carton outside, wooden case on request. Port caps fitted and the nozzle packed separately to avoid impact damage. Neutral packing as standard; private label available.
Custom options
Tube and stem lengths outside the standard range, alternative seal materials and private labelling are quoted per order. Send the drawing or the dimensions you need and we will confirm what is possible before quoting.
