PP Anti-Corrosion Filling Valve, Ø25 Barb Inlet

About this model

The PPR25-150 puts a one-piece moulded PP body on an aluminium alloy cylinder, so the product only ever touches polypropylene. That is the point of it: acids, alkalis and cleaning agents that would attack a stainless body are handled without corrosion, and no metal enters the flow path.

The Ø25 mm barb side inlet takes a hose directly. The Ø58.1 mm mounting flange locks onto the filling platform by thread, and the face-to-orifice distance is 150 mm, which is the number to use when setting platform height.

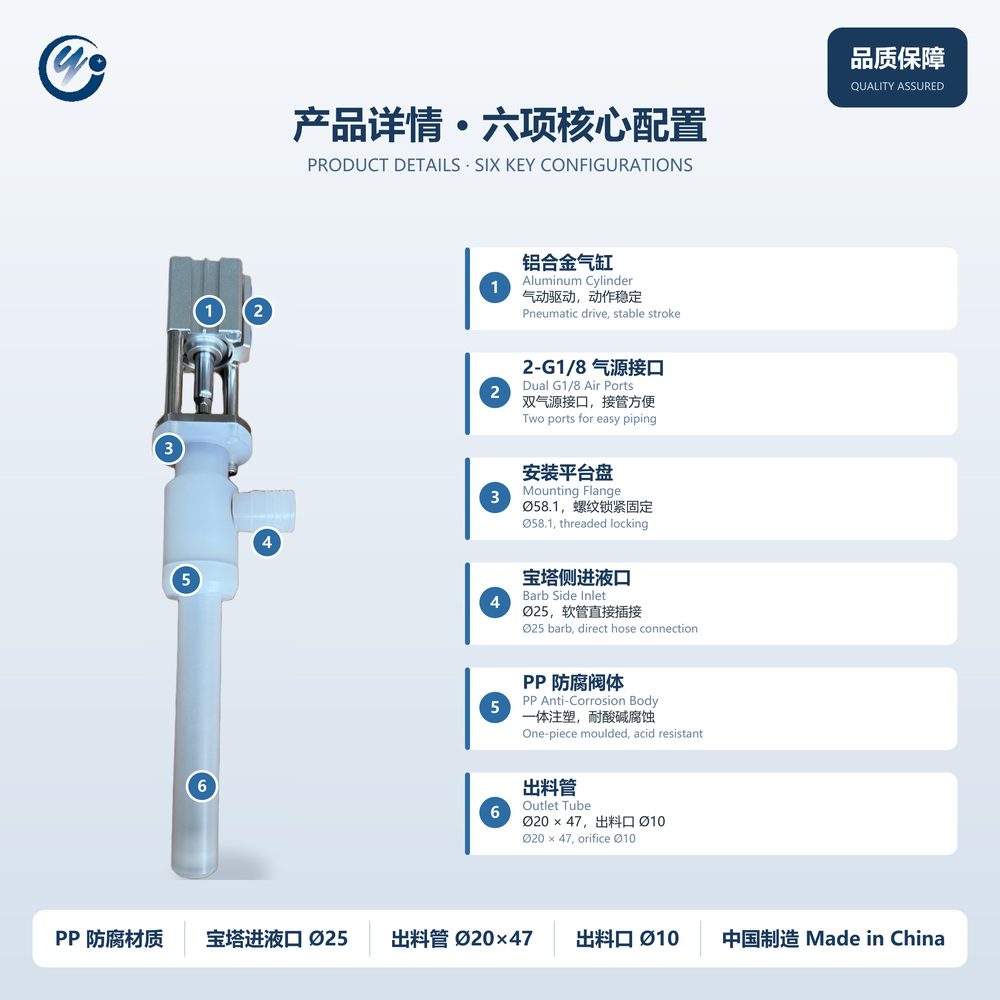

Design features

• One-piece moulded PP body: acid and alkali resistant, no metal contact with product
• Aluminium alloy cylinder for stable, fast open-close action
• 2 × G1/8 air ports, supply and exhaust
• Ø25 mm barb side inlet for direct hose connection
• Ø58.1 mm threaded mounting flange locks onto the filling platform
• Ø20 × 47 mm outlet tube with a Ø10 mm orifice for a concentrated stream

Technical data

Model	PPR25-150
Material	PP (polypropylene), one-piece moulded

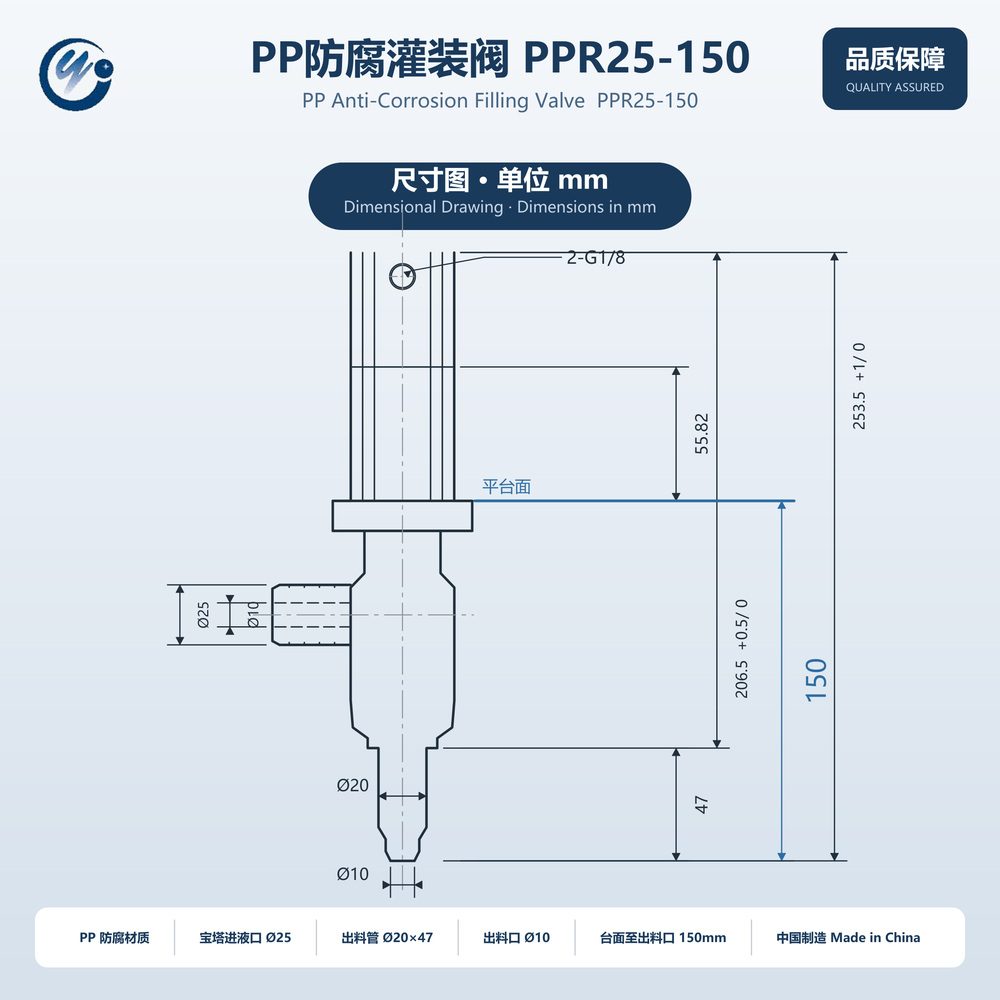

Overall length	253.5 mm (+1 / 0)
Immersion depth	150 mm (flange face to orifice)
Outlet tube	Ø20 × 47 mm
Orifice	Ø10 mm
Side inlet	Ø25 mm barb
Mounting flange	Ø58.1 mm, threaded lock
Air ports	2 × G1/8
Drive	Pneumatic, aluminium alloy cylinder

Applications

• Beverage filling
• Household and personal care liquids
• Chemical liquids where stainless would corrode
• Lines that need a non-metallic wetted path

Packing

One PE bag per piece, carton outside. Neutral packing; private label available.

Custom options

Tube and stem lengths outside the standard range, alternative seal materials and private labelling are quoted per order. Send the drawing or the dimensions you need and we will confirm what is possible before quoting.
