Pneumatic filling valves · 10-32 (20×47)
PP Anti-Corrosion Filling Valve, Ø19.5 Barb Inlet
Compact PP valve with a Ø43.2 mm body and a Ø19.5 mm barb inlet, for tighter nozzle spacing on the platform.
- Model
- 10-32 (20×47)
- Material
- PP (polypropylene), one-piece moulded
- Overall length
- 253.5 mm (+1 / 0)
- Immersion depth
- 150 mm (flange face to orifice)
This is an inquiry basket, not a checkout. You send the list, we confirm price, outlet bore and lead time in writing.
1 pcminimum order
Freesample for first order
OEMneutral packing
About this model
Same platform as the PPR25-150, narrower body. At Ø43.2 mm it fits where nozzles sit close together and a Ø25 mm inlet hose is more than the application needs — the barb here is Ø19.5 mm with a Ø10 mm bore.
Immersion depth and outlet are unchanged: Ø20 × 47 mm tube, Ø10 mm orifice, 150 mm from flange face to orifice, so the two PP models can share a platform height.

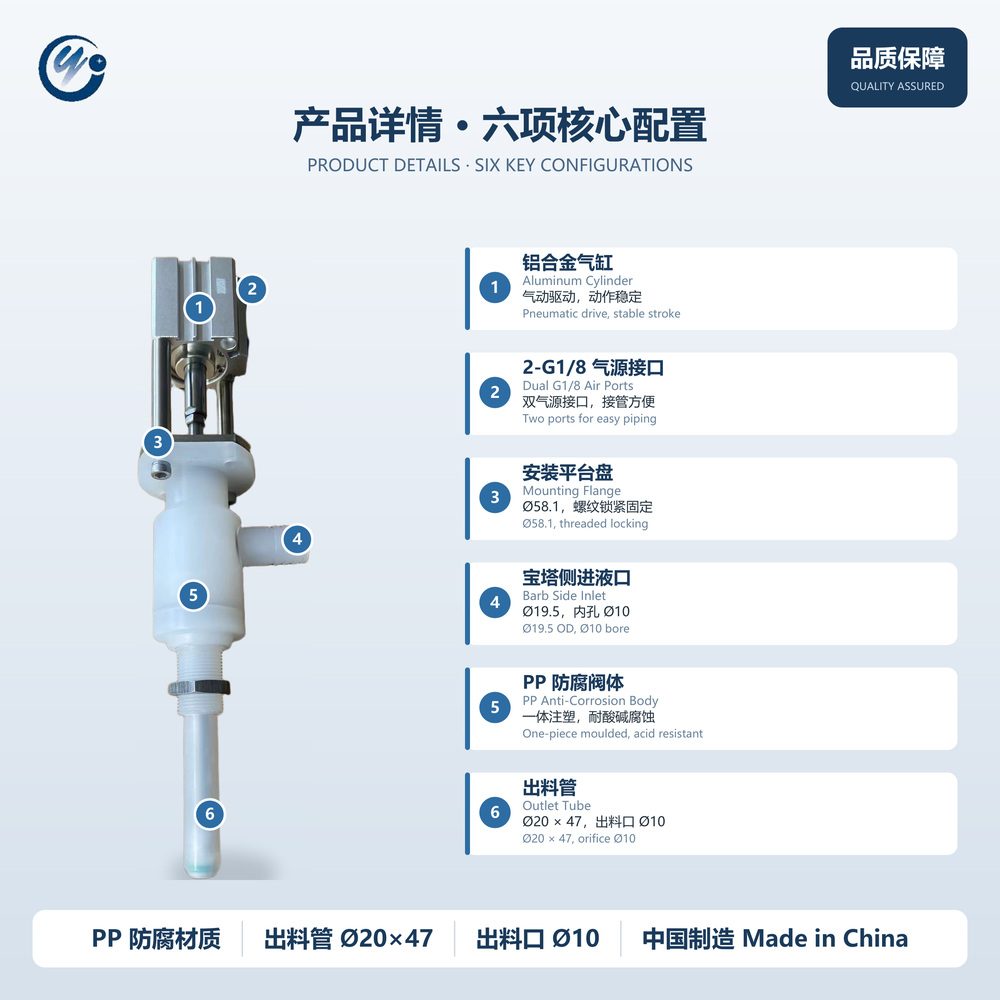

Design features
- Compact Ø43.2 mm PP body for tight nozzle spacing
- Ø19.5 mm barb inlet with a Ø10 mm bore
- One-piece moulded PP: no metal contact with product
- 2 × G1/8 air ports, aluminium alloy cylinder
- Ø20 × 47 mm outlet tube, Ø10 mm orifice
- Ø58.1 mm mounting flange, threaded lock

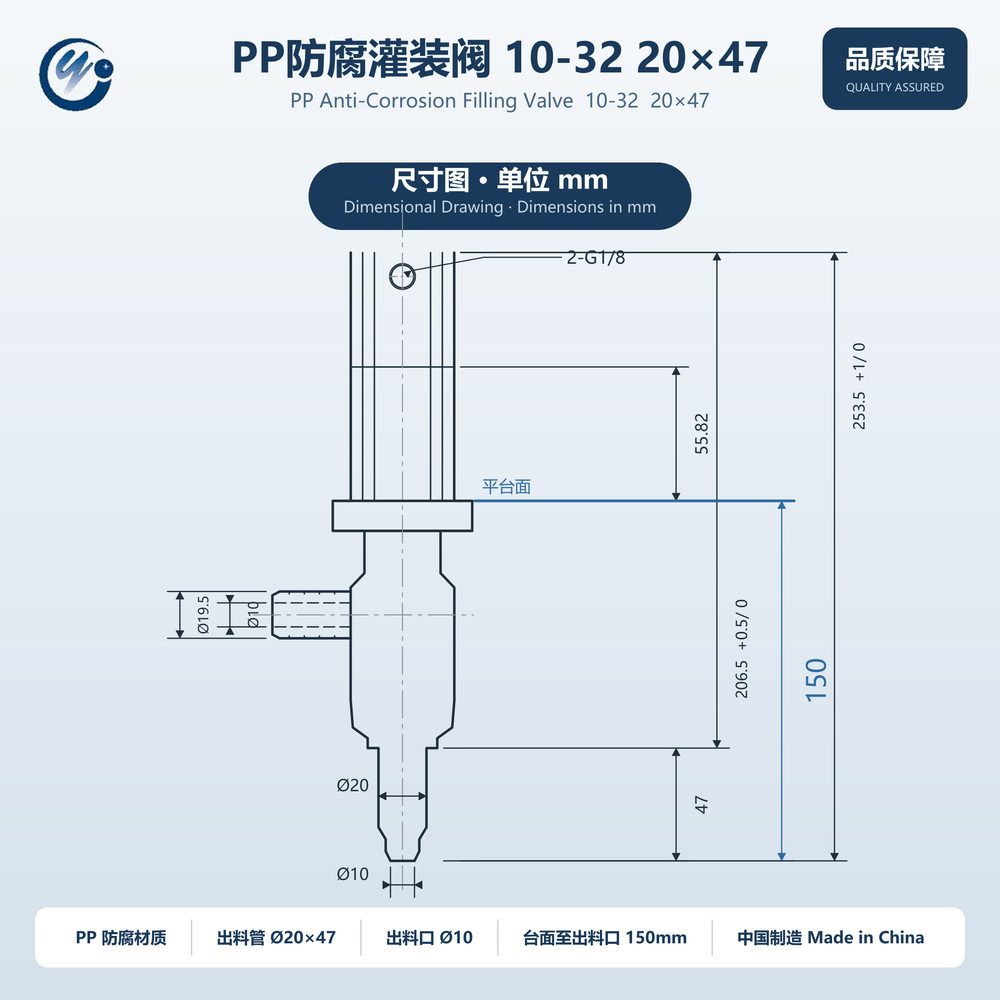

Technical data
| Model | 10-32 (20×47) |
|---|---|
| Material | PP (polypropylene), one-piece moulded |
| Overall length | 253.5 mm (+1 / 0) |
| Immersion depth | 150 mm (flange face to orifice) |
| Outlet tube | Ø20 × 47 mm |
| Orifice | Ø10 mm |
| Side inlet | Ø19.5 mm barb (Ø10 mm bore) |
| Mounting flange | Ø58.1 mm |
| Body diameter | Ø43.2 mm |
| Air ports | 2 × G1/8 |
| Drive | Pneumatic, aluminium alloy cylinder |
Applications
- Beverage filling
- Household and personal care liquids
- Chemical liquids where stainless would corrode
- Multi-nozzle platforms with narrow spacing
Packing
One PE bag per piece, carton outside. Neutral packing; private label available.
Custom options
Tube and stem lengths outside the standard range, alternative seal materials and private labelling are quoted per order. Send the drawing or the dimensions you need and we will confirm what is possible before quoting.
