Stainless Pneumatic Filling Valve, Ø25 × 120 mm Tube

About this model

This version trades stem length for bore. The outlet is a Ø25 × 120 mm tube with a Ø14 mm orifice and the inlet is a tri-clamp Ø50.5 ferrule, so it moves more product per cycle than the Ø16 mm stem versions — useful for sauces and viscous products where a narrow stream slows the line down.

The distance from the cylinder top to the body centre is 106.5 mm, and from the clamp face to the body centre 61.5 mm. Use those two numbers, not the stem length, to set the mounting height.

Design features

• Ø25 mm outlet tube with a Ø14 mm orifice for higher flow
• Tri-clamp Ø50.5 inlet for larger sanitary piping
• SS316L (CF8M) body, PTFE seal
• Double-acting pneumatic drive, 0–0.7 MPa

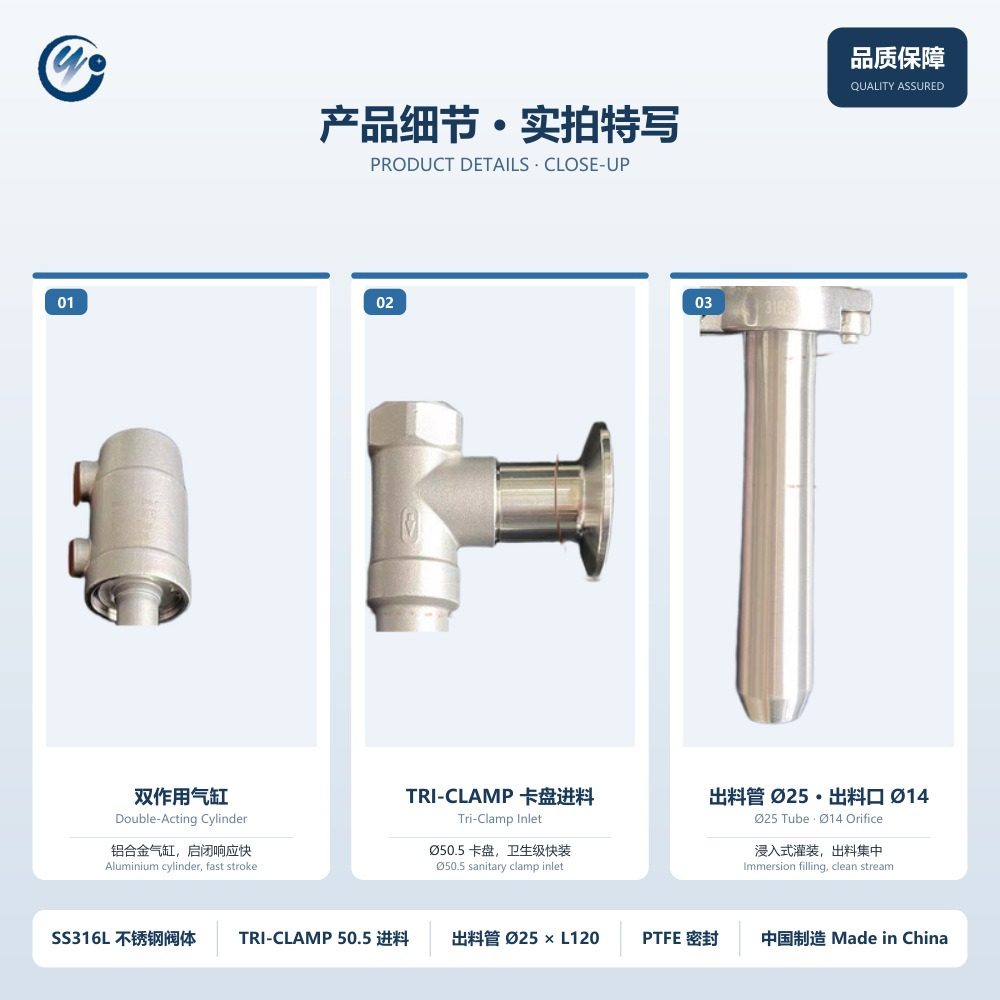

• Compact 120 mm tube for shallow containers and high cycling rates
• Medium temperature −10 to +120 °C

Technical data

Model	DN20-25-L120
Body material	SS316L (CF8M), investment cast
Nominal bore	DN20

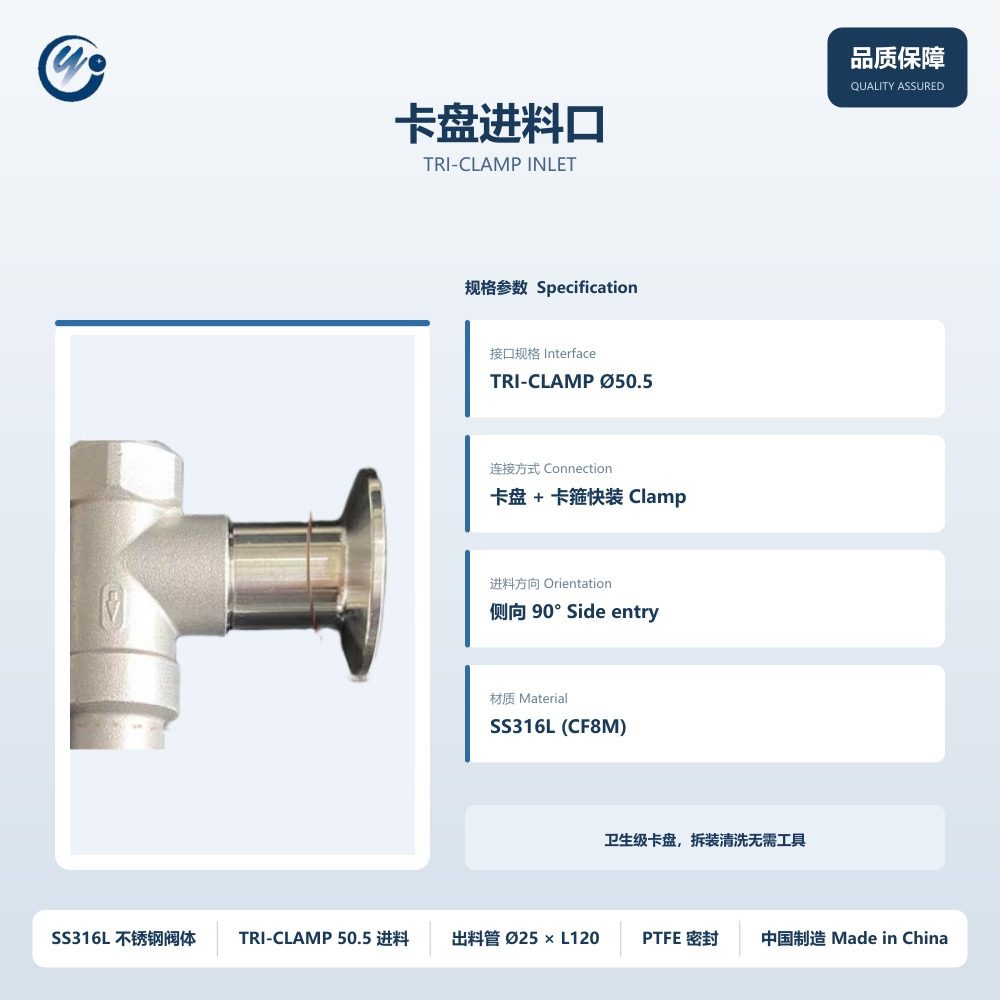

Inlet	Tri-clamp Ø50.5

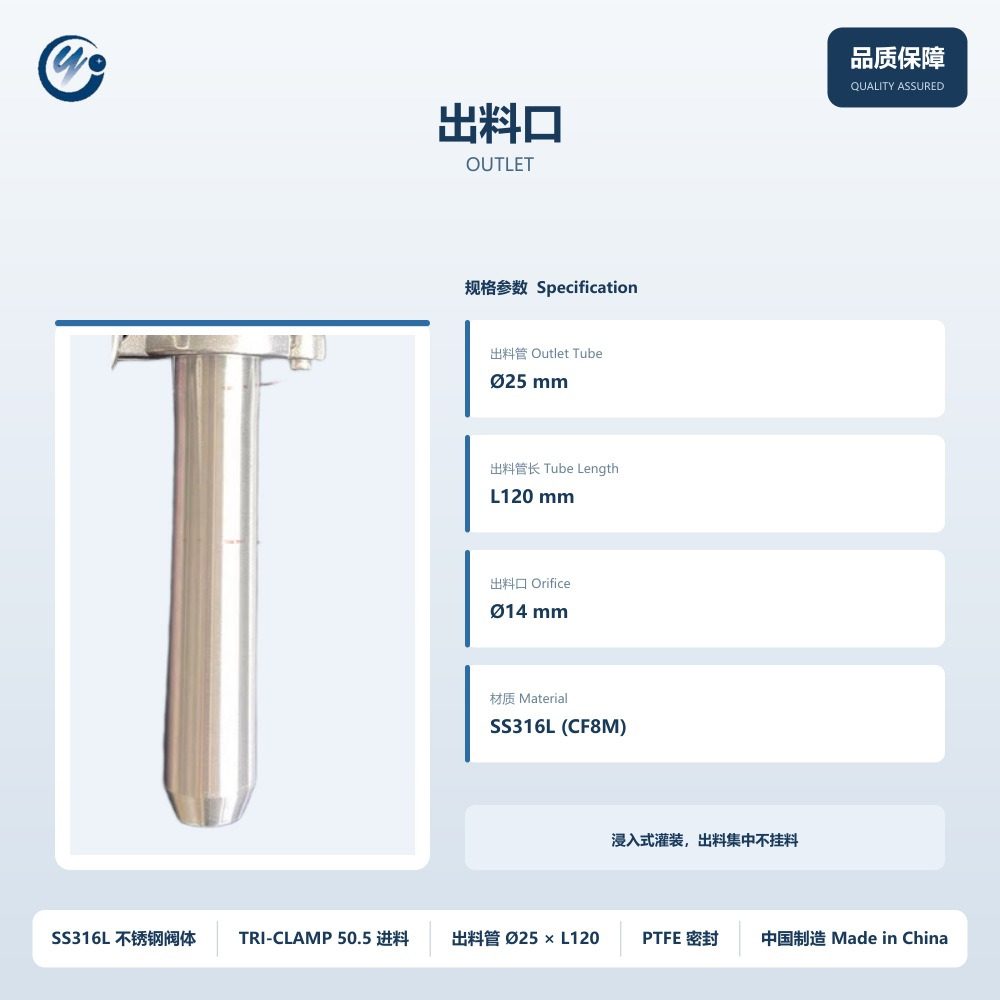

Outlet tube	Ø25 × L120 mm
Orifice	Ø14 mm

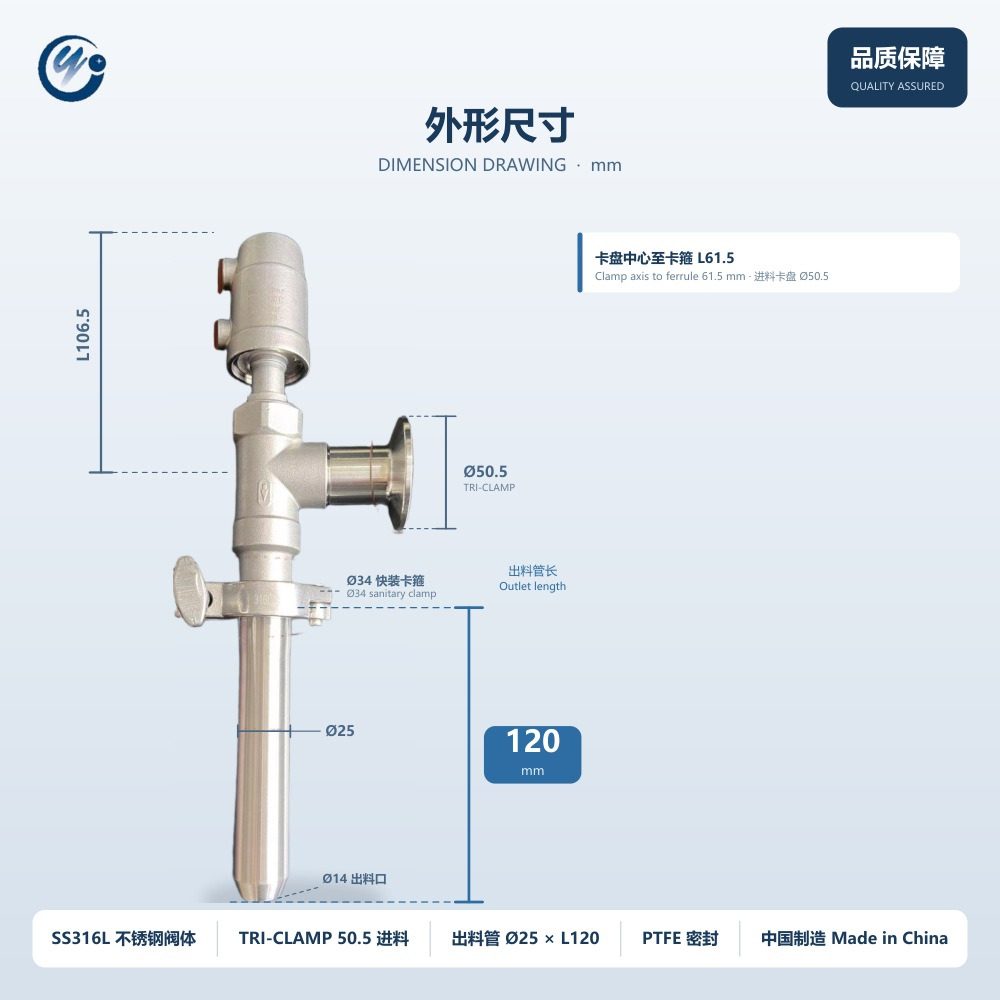

Cylinder top to body centre	106.5 mm
Clamp face to body centre	61.5 mm
Seal	PTFE
Actuation	Double-acting pneumatic
Working pressure	0–0.7 MPa
Medium temperature	−10 to +120 °C

Applications

• Sauces and viscous products at higher flow
• Beverage filling with short fill depth
• Food processing lines
• Chemical fluids, seal selected for the medium

Packing

Carton as standard, wooden case on request. Neutral packing; private label available.

Custom options

Tube and stem lengths outside the standard range, alternative seal materials and private labelling are quoted per order. Send the drawing or the dimensions you need and we will confirm what is possible before quoting.
