Sanitary tri-clamp fittings · Φ32 – Φ102
Sanitary Tri-Clamp Ferrule, SS304 / SS316L
Double-ended clamp ferrule with a straight tube between the two faces. Seven tube sizes, machined from SS304 or SS316L.
- Model
- Φ32 – Φ102, sanitary clamp series
- Material
- SS304 / SS316L
- Sizes
- Φ32 / Φ38 / Φ51 / Φ63 / Φ76 / Φ89 / Φ102 (7 sizes)
- Overall length
- 43 mm face to face, other lengths on request
This is an inquiry basket, not a checkout. You send the list, we confirm price, outlet bore and lead time in writing.
1 pcminimum order
Freesample for first order
OEMneutral packing
About this model

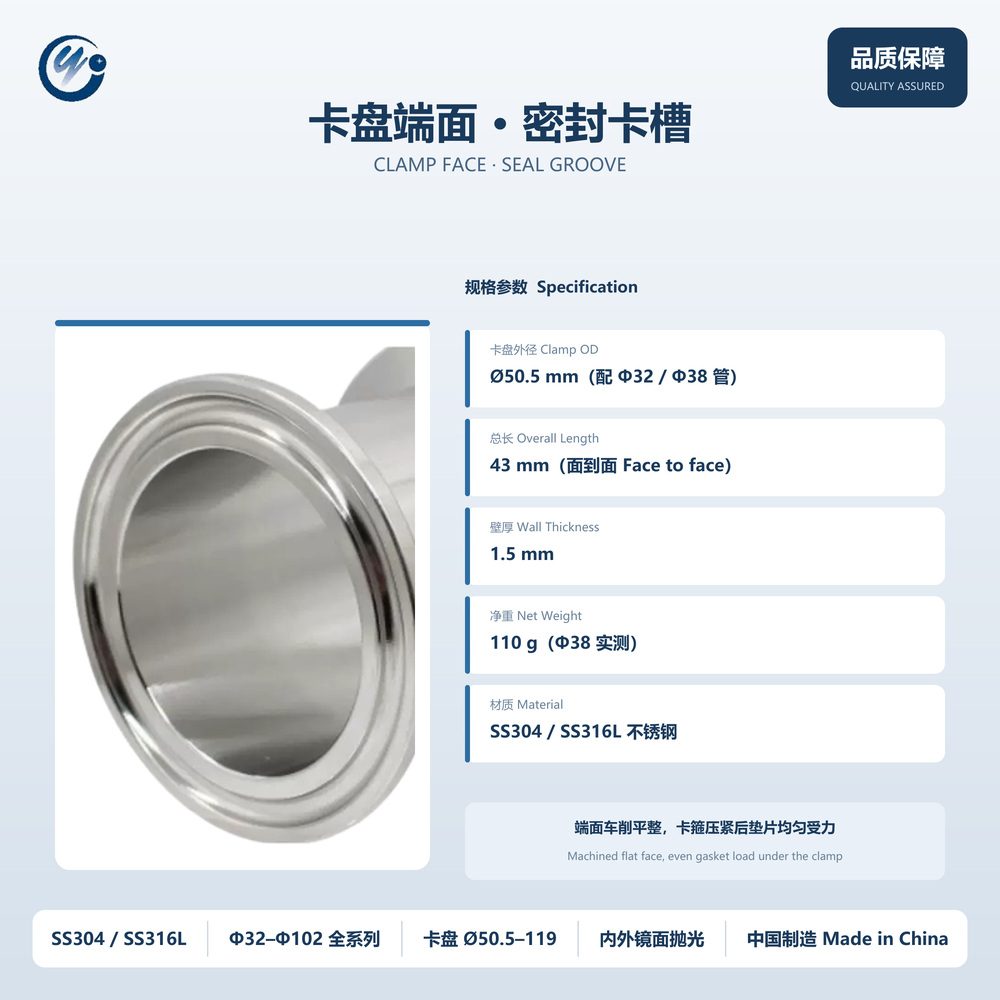

A double-ended clamp ferrule: a tri-clamp face at each end with a short straight tube between them, used to join two clamped pipe sections. Both ends are identical, so there is no wrong way round to fit it, and the flange faces are machined flat so the gasket loads evenly when the clamp is tightened.

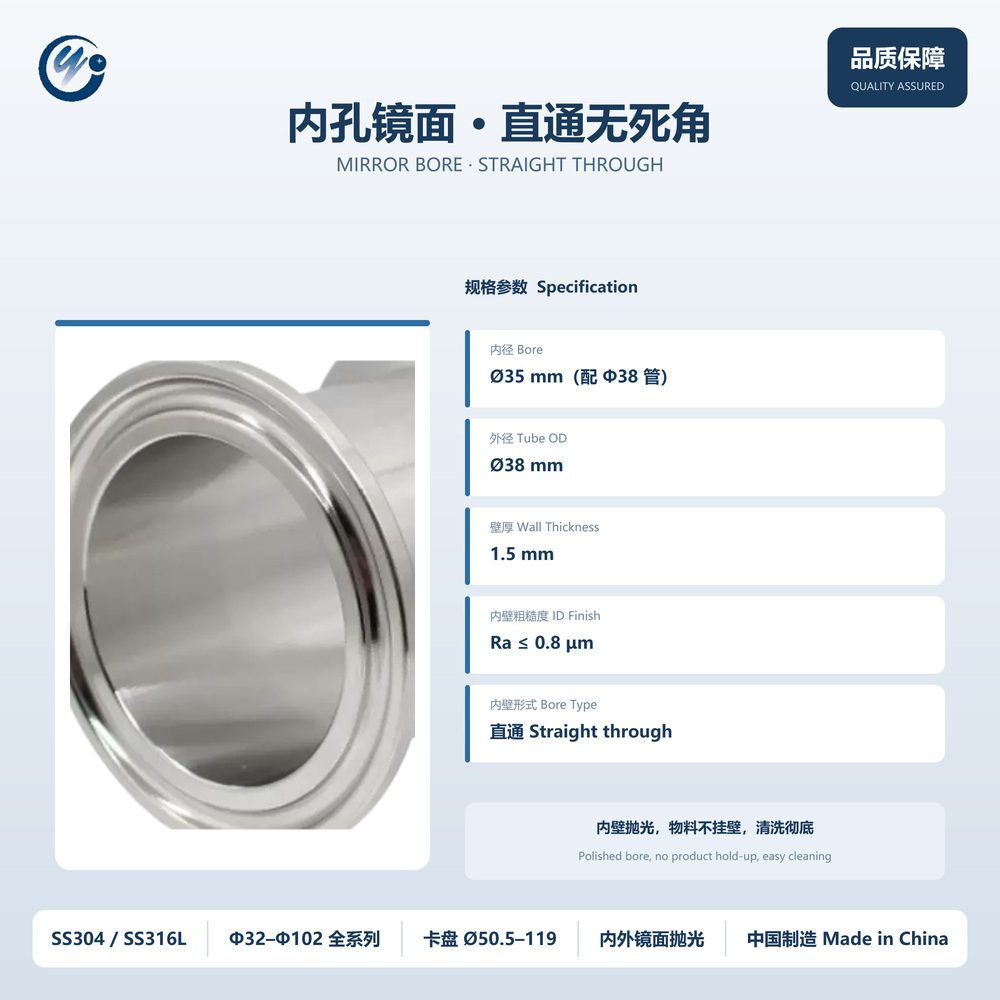

The seal groove is cut to the sanitary clamp standard, which means standard clamps and gaskets fit without matching parts to a supplier. Bores are mirror polished to Ra ≤ 0.8 μm and the outside to Ra ≤ 1.6 μm, so the fitting cleans down without hold-up points.
Design features
- Identical tri-clamp ends — either end connects, no orientation issue
- Machined flat flange faces give even gasket load and reliable sealing
- Seal groove cut to the sanitary clamp standard: standard clamps and gaskets fit directly
- Inner bore Ra ≤ 0.8 μm, straight through, no dead spots

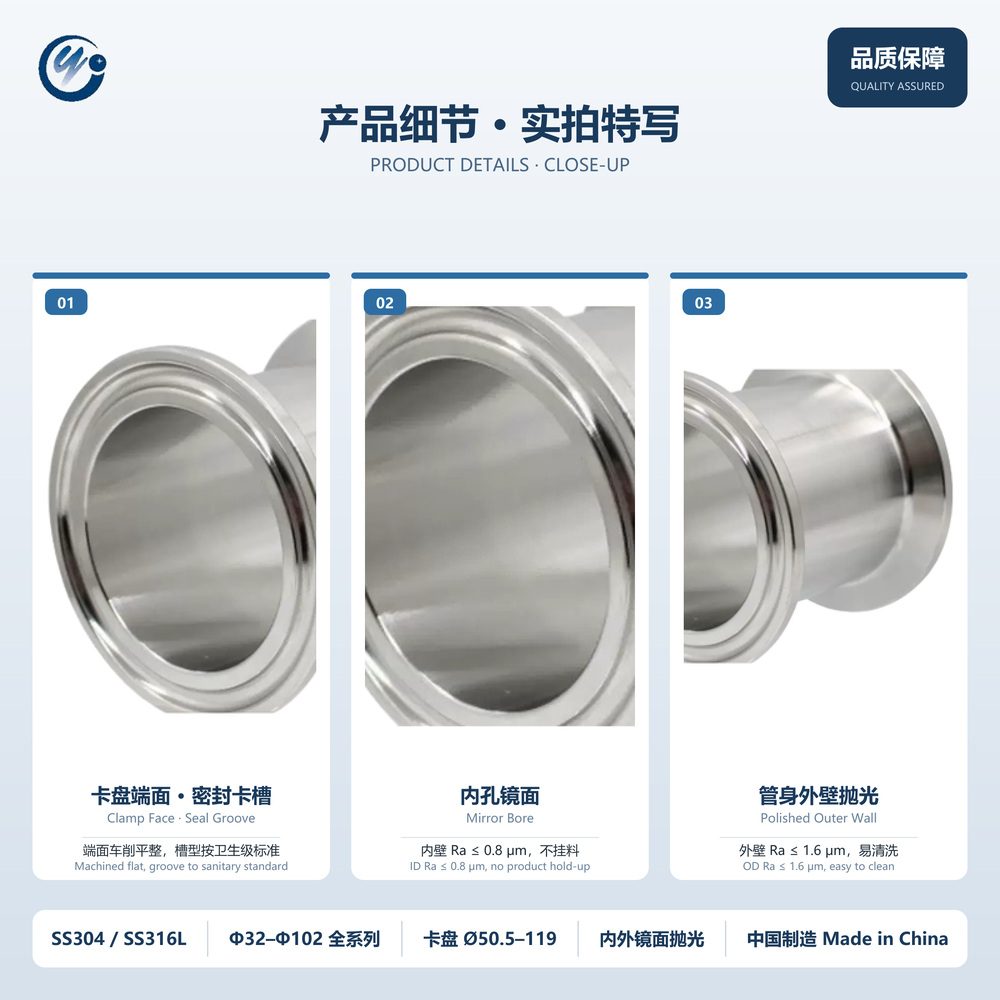

- Outer surface Ra ≤ 1.6 μm, no dust traps, suitable for clean areas
- SS304 or SS316L, turned body, polished inside and out
Technical data
| Model | Φ32 – Φ102, sanitary clamp series |
|---|---|
| Material | SS304 / SS316L |
| Sizes | Φ32 / Φ38 / Φ51 / Φ63 / Φ76 / Φ89 / Φ102 (7 sizes) |

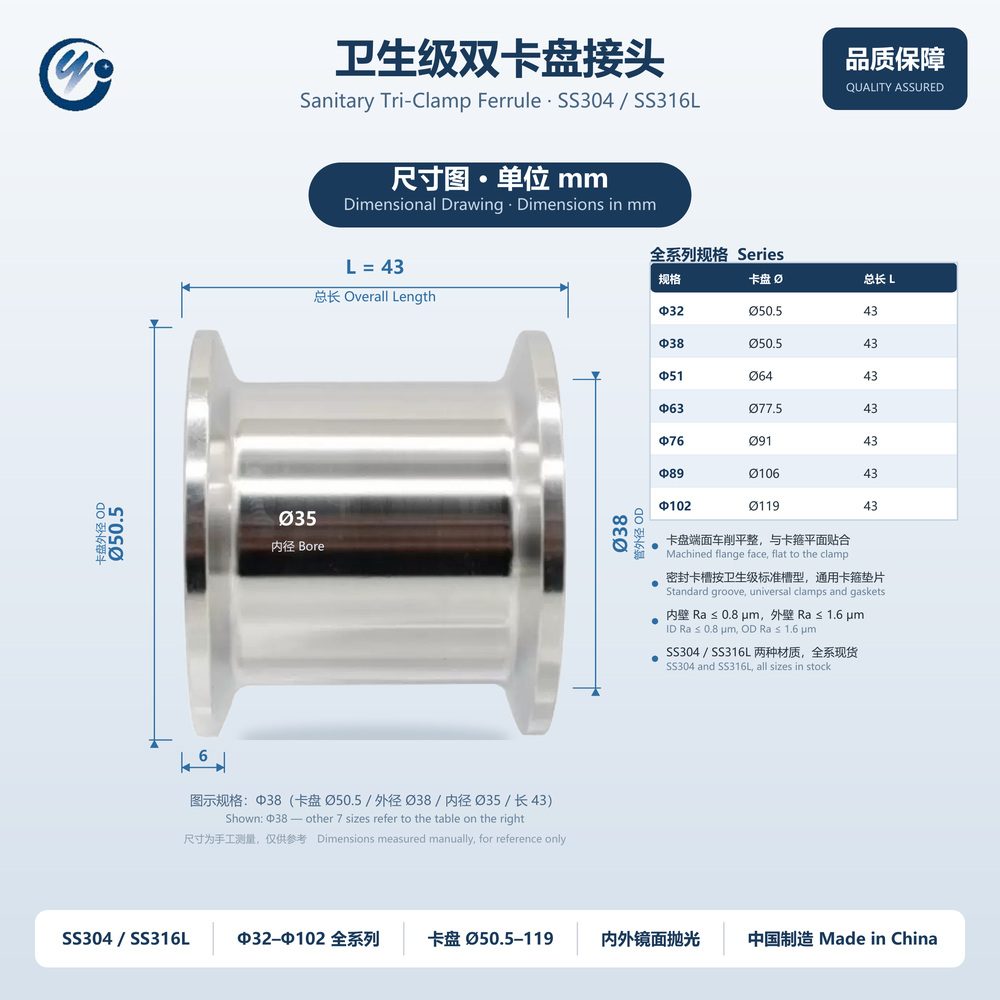

| Overall length | 43 mm face to face, other lengths on request |
| Inner bore finish | Ra ≤ 0.8 μm |
| Outer finish | Ra ≤ 1.6 μm |
| Connection | Tri-clamp both ends |
| Standard | ISO 2852 / GB sanitary clamp |
| Working temperature | −50 to 200 °C, depending on gasket |
Size range
| Tube OD | Clamp OD | Tube ID | Wall | Net weight |
|---|---|---|---|---|
| Φ32 | Ø50.5 | Ø29 | 1.5 | on request |
| Φ38 | Ø50.5 | Ø35 | 1.5 | 110 g |
| Φ51 | Ø64 | Ø48 | 1.5 | 159 g |
| Φ63 | Ø77.5 | Ø59 | 2.0 | 207 g |
| Φ76 | Ø91 | Ø72 | 2.0 | 295 g |
| Φ89 | Ø106 | Ø85 | 2.0 | 380 g |
| Φ102 | Ø119 | Ø98 | 2.0 | 445 g |
Applications
- Food and beverage — dairy, beer, juice and water lines
- Pharmaceutical — quick-connect joints on liquid transfer lines
- Bioengineering — fermenter and purified water piping
- Fine chemical — general corrosive media with the right gasket
Packing
One PE bag per piece, carton outside, wooden case on request. Neutral packing; private label available.
Custom options
Tube and stem lengths outside the standard range, alternative seal materials and private labelling are quoted per order. Send the drawing or the dimensions you need and we will confirm what is possible before quoting.
